PRO SPECIFICATION

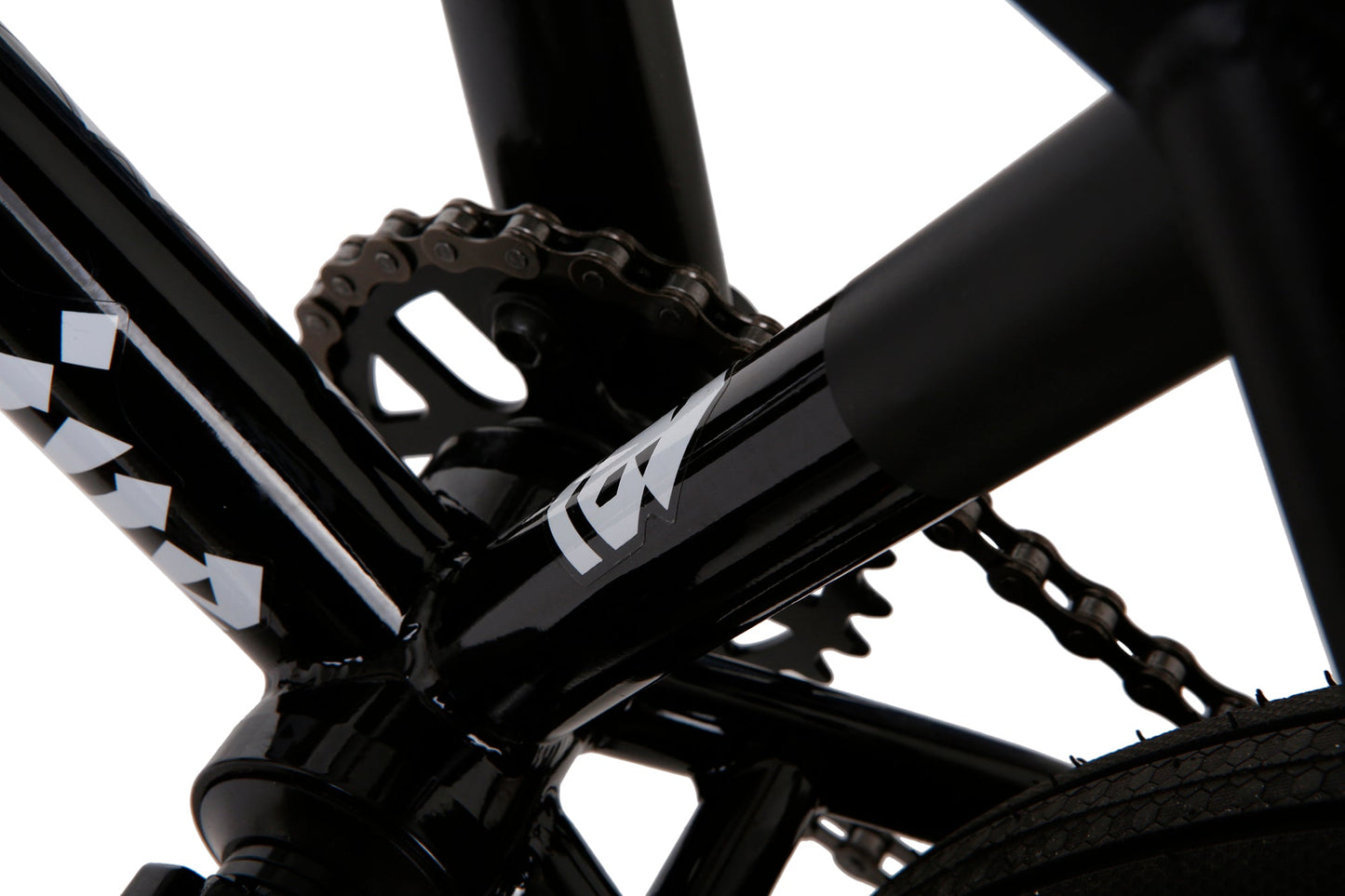

- RT1 FRAME
- This is how you say """"Bike Frame"""" in Japanese: 自転車フレーム Now you know.
- Colour: Hybrid Black™️ (CollectiveBikes half gloss half matt paint)
- Top Tube: 20.6""
- HEAD ANGELS: 75.5 Degrees
-
- Stand over height: 8.5″
- Mid BB: 11.52″ height (HEAT TREATED)
- Rear length: 12.75″-13.1″ (short and responsive) Tapered Downtube - seat tube - seat stays - chain stays
- Offset tubing thickness, thicker in the areas of high stress
- Removable brake lugs and tabs
- 5mm thick Heat treated dropouts
- Full Sanko Japanese 4130 Chromoly Tubing
- (1) years warranty (Check website for full details)
- RT1 FORKS
- Real good bike part, not so good eating utensil... but do let us know if you try
- Length: 28mm reach 45mm peg clearance to fit most modern pegs
- Extra wide to allow 2.4 tyre clearance
- 4130 Sanko chromoly tubing
- Tapered for legs 31.8 to 22.5
- 165mm CNC steerer tube with internal reductions to help reduce weight.
- 45mm peg clearance to fit most modern pegs.
- 28mm Offset
- Allows most 2.4 tyre clearance
- Comes with CollectiveBikes designed Top Cap
- Matt Black
- Weight: 987g"
- RT1 BARS
- You actually DO want to end up behind these bars...
- Backsweep: 12º
- Upsweep: 2º
- Heat Treated Sanko tubing (4130 Chromoly)
- Sizes: 9” x 29”
- Colours: Gloss Black
- Weight: 805 grams "
- RT1 STEM
- All stem, no seeds or leaves... but we aren't sorry about it.
- Full 6061-T6 tall top load stem. The stem has been machined internally to save weight and comes complete with solid bolts. Laser etched with CB and RT1 logos.
- Reach: 50mm
- Rise: 33mm
- Bar Clamping Diameter: 22.2mm
- Weight: 302g
- RT1 SEAT
- Here to protect your most valuables...
- Fixed seat and seat post combo
- Slim simple design with RT1 logo print Kevlar cover
- Weight: 226 grams
- WHEEL SET
- 9t RHD Hub 14 mm Rear Axle Hub
- 10mm Front Hub
- 36h Double Wall 20"" Rims Black
- Black Spokes
- Alloy nipples
- CRANKSET - COLLECTIVE
- Collective Bikes 3 piece cranks
- Collective Bikes 25T Sprocket
- Plastic slim pedals
- Mid Bottom Bracket
- KMC Chain
- Weight: 22lbs
-
